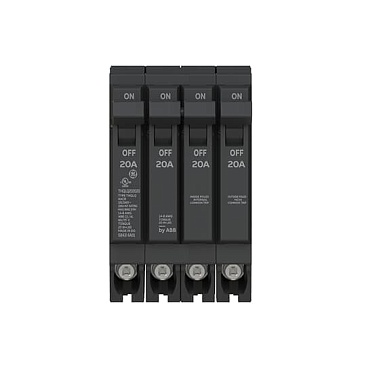

The GE THQLQ202020 Quad Circuit Breaker is a compact, thermal-magnetic protective device combining two 20 A single‑pole and one 20 A double‑pole breakers in a single module. It’s built for electricians, homeowners, OEMs, and MRO teams needing dense circuit configurations in constrained panel spaces.
Frequently Asked Questions
- What applications is this breaker suited for? Ideal for residential load centers, workshops, RVs, and light commercial sites needing 120/240 V protection.
- What safety certifications does it have? CSA‑approved and UL‑listed with a 10 kAIC interrupt rating and tin‑plated copper stabs for corrosion resistance.
- Is it compatible with existing panels? Yes—works with GE and ABB PowerMark™ panels, supports reverse feed installations.
Common Use Scenarios
- Electricians upgrading residential load centers needing extra circuits without panel expansion.
- MRO teams replacing outdated breakers in rental properties—fast plug-in, no rewiring.
- OEMs integrating compact power modules into generators or custom enclosures where space is tight.
Installation Tips
- Ensure panel compatibility (GE/ABB Q‑Line style) and confirm tin-plated stab contact seating firmly.
- Torque screws per spec: #14–8 Cu or #12–8 Al conductor range for secure, vibration-resistant connections.
Designed to maximize panel space efficiency, the THQLQ202020 connects securely via plug-in mount in standard residential load centers. Rated 120/240 V and 20 A per pole, it reliably manages current across multiple circuits. With competitive pricing, fast shipping, and 100% Canadian‑owned service, Evolt Electrical Supply ensures you get dependable protection and value.
No reviews found
GE THQLQ202020 Quad Circuit Breaker by GE – a space-saving 20 A thermal-magnetic breaker combining two single-pole and one double-pole circuits, ideal for residential load centers to safely manage 120/240 V loads.
